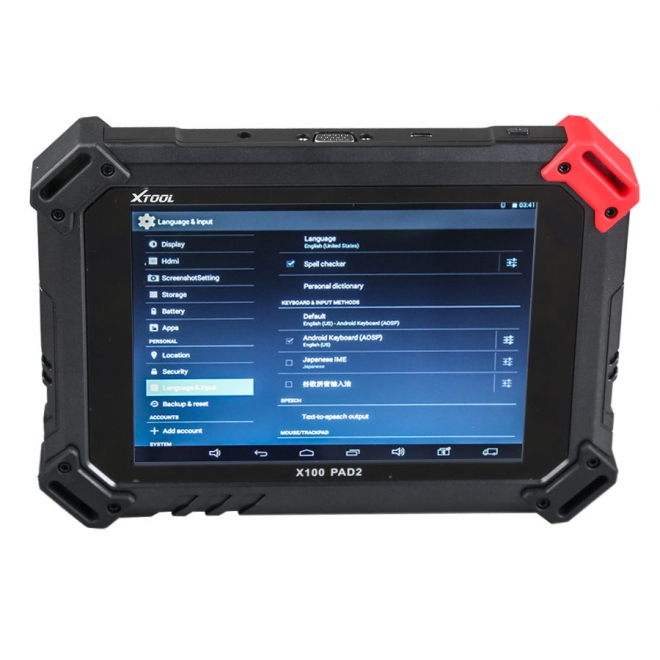

XTOOL X-100 PAD 2 Special Functions Plus Xtool X100C for iOS and Android Auto Key Programmer
X-100 PAD 2 is a tablet with the latest technologies to perform key programming, mileage adjustment, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, steering angle calibration and OBD-II engine diagnosis. Xtool X100C can work with iOS and Android System by Bluetooth Connection, easier to operate, which is also a 2 in 1 auto key programmer and pin code reader for Ford, Mazda, Peugeot and Citroen.
XTOOL X-100 PAD 2 Special Functions For IOS and Android Features
Key Programming
Oil Reset/Engine oil light reset
Odometer Adjustment
Tire Pressure Warning Light Reset
Timing belt light reset (Manual Operation)
EPB Electrical Parking Brake Adaptation
TPS Throttle Body Adaptation
Steering Angle Calibration
Battery Reset
DPF PIN Code Reading
Hexadcimal editor(Win Hex)
OBDII Diagnosis
Support the latest vehicles with CAN BUS and UDS protocol
Update Via WIFI (always equip your device with the latest software)
Specifications:
| Operating System: |
Android 4.4.4 |
| Memory: |
1GB RAM, 16GB Flash |
| CPU |
Quad Core, 1.6 GHz |
| Display |
8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution |
| Sensors: |
Gravity Sensor, Light Sensor |
| Input/Output: |
Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port |
| Battery: |
4000mAh, 7.4V |
| WIFI |
WIFI 2.4Ghz |
| Bluetooth |
100 Meters |
| Power Voltage: |
12V |
| Power Consumption: |
29.6W |
| Operating Temperature: |
-20 to 50℃(-4 to 126℉) |
| Humidity: |
<90% |
| Dimension: |
(L*W*H): 240*177*30mm |
Xtool X100 C Features:
Vehicle Compatibility: X-100 C works with four brand cars, they are Ford, Mazda, Peugeot, Citroen and DS
Bluetooth auto-reconnection: Once the Bluetooth is paired, you don’t need to input the code to pair with your phone anymore.
The device will reconnect with your phone automatically.
Connection: Connection via Bluetooth (Android and IOS)
Free update: Download latest XtoolC App with new features from Google Play or Apple Store.
X100C reads PIN CODE via dongle and does key programming via OBD2 socket with your cell phone.
Language: English, more language will be added.
Here is part of X100C pin code reading function list, more models will be added one by one:
| Auto Maker |
Model |
Year |
Chip Type |
Remarks |
| Mazda |
CX-3 |
2015+ |
smart PCF7953 ID46 |
|
| Mazda |
CX-3 |
2012+ |
smart PCF7953 ID46 |
|
| Mazda |
2 |
2014+ |
smart PCF7953 ID46 |
|
| Mazda |
3 |
2013+ |
smart PCF7953 ID46 |
|
| Mazda |
6 |
2013+ |
smart PCF7953 ID46 |
|
| Mazda |
2 |
2002 - 2013 |
4D ID63 |
|
| Mazda |
3 |
2002 - 2012 |
4D ID63 |
|
| Mazda |
5 |
2002 - 2012 |
4D ID63 |
|
| Mazda |
6 |
2014 - 2012 |
4D ID63 |
|
| Ford |
Focus3/Cmax |
2010+ - |
DST80+ |
mechanical |
| Ford |
Focus3/Cmax |
2010+ - |
DST80+ |
|
| Ford |
Kuga2 |
2014+ - |
DST80+ |
mechanical |
| Ford |
Kuga2 |
2014+ - |
DST80+ |
|
| Ford |
MondeoMK4/SMax facelift |
2010+ - |
DST80+ |
mechanical |
| Ford |
MondeoMK4/SMax facelift |
2010+ - |
DST80+ |
|
| Ford |
Fiesta |
2014+ - |
DST80+ |
only mechanical |
| Ford |
Bmax |
|
|
only mechanical |
| Ford |
Custom |
|
|
only mechanical, not fully supported |
| Ford |
Fiesta |
|
|
|
| Ford |
Bmax |
|
|
|
| Ford |
Ecosport |
|
|
|
| Peugeot |
1007 |
|
|
|
| Peugeot |
206 |
|
|
|
| Peugeot |
207 |
|
|
|
| Peugeot |
208 |
|
|
|
| Peugeot |
2008 |
|
|
|
| Peugeot |
301 |
|
|
|
| Peugeot |
306 |
|
|
|
| Peugeot |
307 |
|
|
|
| Peugeot |
308 |
|
|
|
| Peugeot |
3008 |
|
|
|
| Peugeot |
406 |
|
|
|
| Peugeot |
407 |
|
|
|
| Peugeot |
4007 |
|
|
|
| Peugeot |
508 |
|
|
|
| Peugeot |
5008 |
|
|
|
| Peugeot |
607 |
|
|
|
| Peugeot |
806 |
|
|
|
| Peugeot |
807 |
|
|
|
| Peugeot |
Bipper |
|
|
|
| Peugeot |
Expert |
|
|
|
| Peugeot |
Partner |
|
|
|
| Citroen |
C2 |
|
|
|
| Citroen |
C3 |
|
|
|
| Citroen |
C3 Picasso |
|
|
|
| Citroen |
C3 Pluriel |
|
|
|
| Citroen |
C4 Cactus |
|
|
|
| Citroen |
C4 Picasso |
|
|
|
| Citroen |
C5 |
|
|
|
| Citroen |
C8 |
|
|
|
| Citroen |
C-Elysee |
|
|
|
| Citroen |
xsara Picasso |
|
|
|
| Citroen |
Berlingo 2 |
|
|
|
| Citroen |
Berlingo 3 |
|
|
|
| Citroen |
Jumper |
|
|
|
| Citroen |
Jumpy |
|
|
|
| Citroen |
DS3 |
|
|
|
| Citroen |
DS4 |
|
|
|
| Citroen |
DS5 |
|
|
|
Support both iOS and Android:
Recommended APP: X-100 C (search and download it from Apple store and GooglePlay Store)
| OS |
Device |
Mode |
Apple iOS
(Requires iOS4.3 or later) |
IPod touch |
iPod Touch 1st generation, 2nd generation, 3rd generation, 4th generation |
| |
iPhone |
iPhone, iPhone 3, iPhone 3GS, iPhone 4, iPhone4s, iPhone 5, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iphone 7, iphone 7 |
| |
Pad |
iPad, iPad 2, ipad 3, iPad air, iPad Mini 1, iPad Mini 2, |
Android
(Requires OS2.3 or later) |
|
ll android smart phone and tablet |
Package including:
1pc x OBD II-16
1pc x HONDA-3
1pc x KIA-20
1pc x MAZDA-17R
1pc x HYUNDAI/KIA-10
1pc x Main Cable (DB15_Male To VGA_Male)
1pc x X-100 PAD 2
1pc x DC12V(AC100~240V) 3ACharger
1pc x US Power Adapter
1pc x EU Power Adapter
1pc x EEPROM
1pc x USB Type-C to Mini USB cable
1pc x Type-C cable
1pc x Certificate of Quality
1pc x Packing List
1pc x User Manual
1pc x X-100 C
1pc x OBD II Cable
