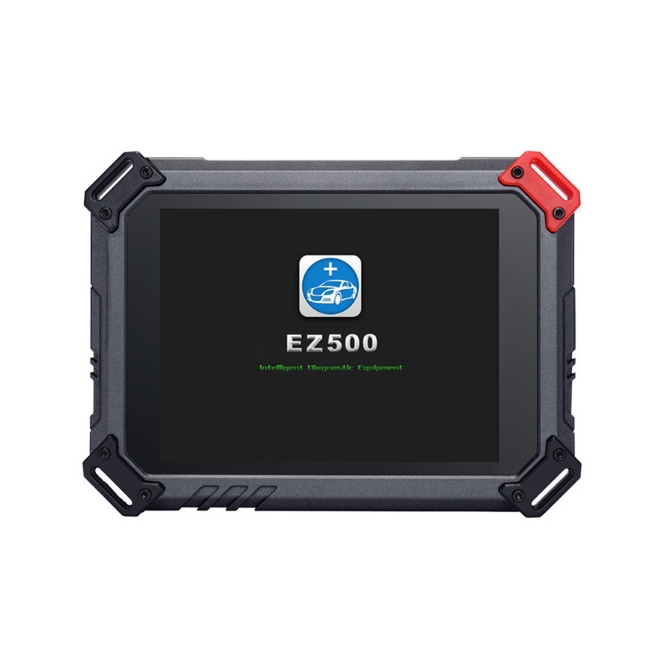

XTOOL EZ500 Gasoline Version OBD2 Tablet Full System Diagnosis with Special Function

XTOOL EZ500 Full-System Diagnosis for Gasoline Vehicles

XTOOL EZ500 Gasoline Introduction:
Model name:XTOOL EZ500
Software Version:Newest
Update:One-click software update via WIFI
Car Models:For Multi-Gasoline
Languages:English
Functions:Diagnostic interface
Connection:By OBD2.
Brand:XTOOL

XTOOL EZ500 Features:

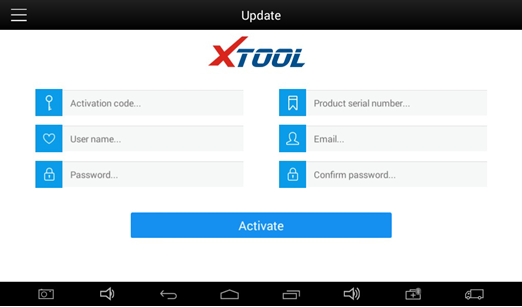

-Easy registration when EZ500 is connected to WIFI

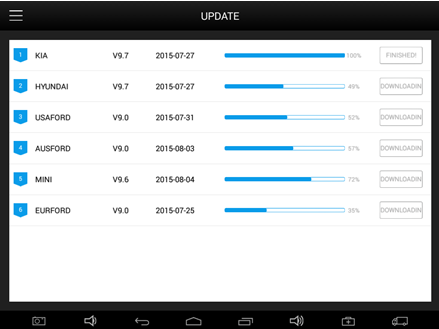

-One-click software update via WIFI
-Remote access,Easy registration when EZ500 is connected via Wifi, no need connected to PC.
-Diagnosis reports in PDF file.Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars.
-Record and playback live data
-8.0 inch multi-touch screen
-On-board battery
-Extensive vehicle coverage for most US, Asian and European vehicle makes

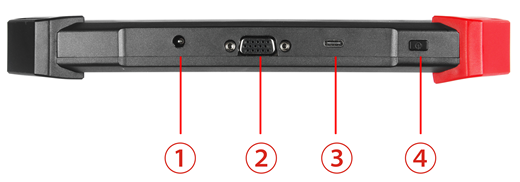

Xtool EZ500 Layout

①　DC Charging port: Battery charging
②　DB15 Interface: Supports wired connection with car by the cable
③　USB Type C Interface: Compatible with HDMI TV port; Transfer audio and video simultaneously
④　Power Button: Power on or power off

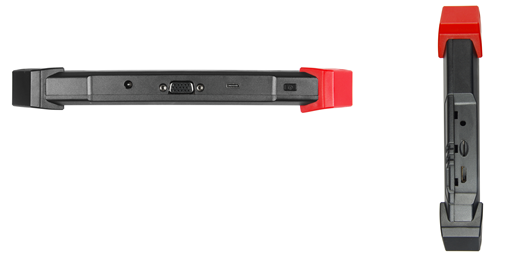

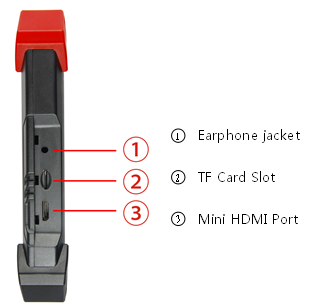

Xtool EZ500 Tablet Side View

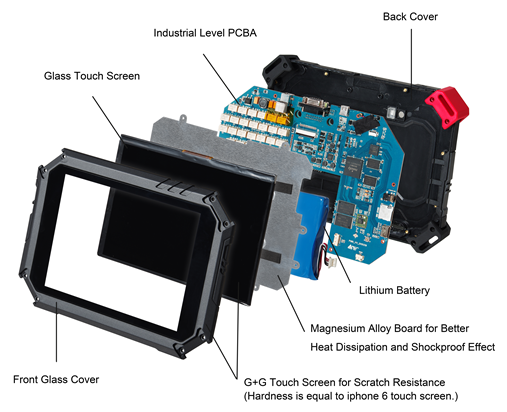

EZ500 Exploded Diagram

Connect to the vehicle directly with cable

①　EZ500 Mainframe
②　Main Test Cable
③　OBD2 16pin Connector
④　Vehicle

EZ500 Screen Shot pictures:

EZ500 Car List:

American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn

Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV

Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more…

Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...

Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer,Body (ECM), Chassis……

Basic functions: read fault codes, clear fault codes, live data, actuation

Accurate live data in both Wave and Dashboard form

Special functions: ABS bleeding, service light reset, DPF regeneration, steering angle calibration, battery reset, throttle body adaptation, Service light reset, Throttle Sensor Adjustment…..

Specification:

Operating System:  Android 4.4.4
Memory: 1GB RAM,16GB Flash
CPU Quad Core, 1.6 GHz
Display     8.0 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
Sensors:   Gravity Sensor, Light Sensor
Input/Output:  Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USBPort, TF Card Port
Battery: 4000mAh, 7.4V
WIFI WIFI 2.4Ghz
Bluetooth         100 Meters
Power Voltage:       12V
Power Consumption:       29.6W
Operating Temperature:         -20 to 50℃(-4 to 126℉)
Humidity:          <90%
Dimension:       (L*W*H): 240*177*30mm

Package including:

1pc x EZ500 Tablet
1pc x Charger for Tablet
1pc x OBD II-16
1pc x HONDA-3
1pc x BMW-20
1pc x TOYOTA-17
1pc x MAZDA-17R
1pc x KIA-20
1pc x NISSAN-14
1pc x GM/DAEWOO-12
1pc x SELFTEST
1pc x UNIVERSAL-3
1pc x SUZUKI-3
1pc x FIAT-3
1pc x CITROEN-2
1pc x AUDI-4
1pc x MITSUBISHI-12+16
1pc x BENZ-38
1pc x BENZ-14
1pc x Main Cable
1pc x battery Cable
1pc x Cigar Lighter Cable
1pc x US Power Adapter
1pc x EU Power Adapter
1pc x Micro USB Cable
1pc x Case
1pc x Stand for EZ500
1pc x Certificate of Quality
1pc x Packing List
1pc x User Manual
1pc x Carton
