Vgate iCar3 iCar 3 Bluetooth OBD2 Code Scanner Works On Android/PC/IOS

Vgate iCar3 iCar 3 WIFI OBD2 Code Scanner Works On Android/PC/IOS

Notice:

This one CAN'T support for Diesel or Trucks.
We have five colors ,but colors sent randomly.If there is a specific request, please leave a message.

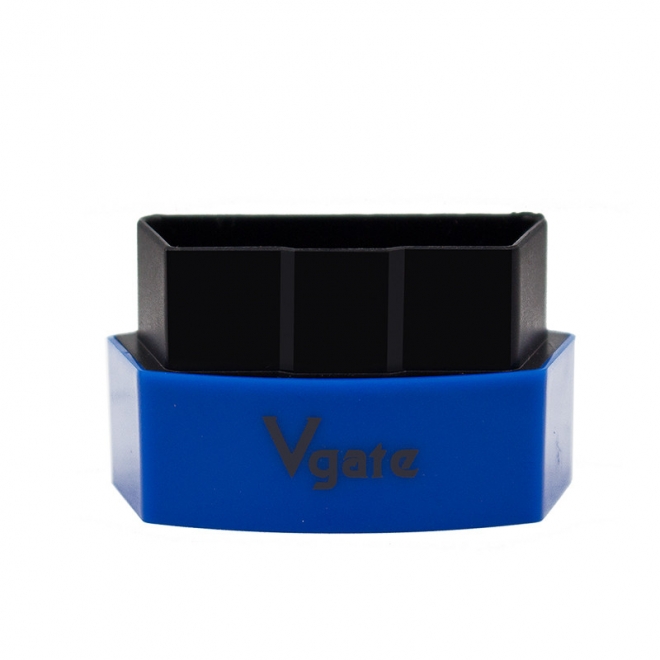

The icar 3 device is a small adapter that plugged into the vehicle OBD-connector.
On Bluetooth, it connects to any computer, tablet or smartphone, With
associated diagnostic procedures .
With iCar3 you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.
iCar 3 scan tool is a high-quality automotive scanning tool, supports all OBD-II protocols Automatic.

ICAR 3 Highlights:

1. Small size, compact structure. Plug and never unplug
2. Stable  connection
3. When stop communication, wait half an hour, auto sleep
4. Supports all OBDII protocols
5. The adapter uses the fastest and most reliable ARM chips
6. Bluetooth 5~10 meter
7. iCar(Bluetooth version) support for software applications for Palm, PDA,Mobile(Andrews,java,blackmerry,etc)

Vgate iCar3 ELM327 OBD2 Scanner Functions:

1. Read, erase and display code descriptions problems - both standard and spetskodov manufacturers.
2. Measure the fuel consumption.
3. Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.

4. Turn off the MIL (signal Check Engine).
5. Download data to external media in a variety of formats for later printing.
6. Record various parameters, display graphics in real time, and more.

iCar 2 supports OBD-II protocols:

0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
   A.SAE J1939 CAN(29bit ID,250*Kbaud)
   B.USER1 CAN(11*bit ID,125*Kbaud)
   C.USER2 CAN(11*bit ID,50*kbaud)

Software Support:

1.iOS 7.0-9.1 : (supports wifi)

DashCommand
Rev2 lite
NovaScan

2.Android 4.0-4.4: (supports bluetooth)

alOBD scanner
DashCommand 2.9.1 by Palmer Performance
Torque by Ian Hawkins, Android 1.5/1.6/2.0/2.1
VoyagerDash by GTOSoft

3.Symbian : (supports bluetooth)

AutoMobile
OBDScope (free trial and paid EUR9.95)

4.Applications supporting ELM327 chip:

PC windows (supports RS232/USB/bluetooth):
Auto Enginuity ScanTool 6.02 for PC in English/German/Hungarian/Spanish
Dashcommand by Palm Performance, Win 95/98/ME/2000/XP/Vista/7, support touch pad.

Digimoto 5.01.22
Easy OBDII 3.0.0
EVOSCAN for Mitsbishi 1994~2009, Mitsbishi EVOX 2008~2010, Subru SSMII 1997~2007
FiatECUScan for Alfa/Fiat/Lancia, Win XP/Vista/7
for G-M mode 22 scan tool by Terry
moDiag Professional in English/German/Hungarian/Romanian, Win 2000/XP/Vista/7
MultiECUScan

OBD 2007 PID reader for PC and pocket PC by GLM Software
OBD Logger Windows & Unix by Jonathan Senkerik
OBDScan for G-M for Fod Chrsler Mazd. Win 2000/XP/Vista/7
OBD-II ScanMaster 3.52 in English/German/Russian by Wladimir Gurskij
OBD-II ScanMaster Pro
OBD2 Scantool by Ivan Andrewjeski
OBDII for ELM322 by David Huffman
OBDWiz

PCMSCAN for Windows 95/98/ME/NT/2K/XP/Vista/Win7
ProScan for Win 98/98SE/ME/2000/XP/Vista, NT4.0 SP6A.
pyOBD by Donour Sizemore for MacOSX and Linux
RDDTC Simple Trouble Code Reader by Pete Calinski
Real Scan by Brent Harris, Simple Read & Reset software for older PC.
ScanTest by Ivan Ganev aka a-ser for Pocket PC

ScanMaster-ELM 2.1, Win 98/ME/2000/XP/7, USB/Bluetooth/WLAN, OPL 1996~2004, For Alfa Romeo 1998~2001, Fit Bravo 1998~2002
ScanXL ELM (1996~2008 Fod, Licolin, Mercur)
ScanXL PRO, Win 95/98/ME/NT/2K/XP/Vista/7

TouchScan for Win2000SP4, XP SP2, Vista 32/64, 7 32/64, serial/USB/Bluetooth/WiFi/touch screen, EOBD/JOBD, ?90?PID, for Nissan
Vauxcheck by Gendan, For Vauhall/Opel 1997~2008 petrol/diesel (2004~2008 CAN bus), Renault Vivaro/Movano, Vectra C diesel 2002~2003
VitalScan 1.3 for Win, Win Mobile, Palm, Win smartphone
WGIobdII
wOBD by WDT

5.Palm/Pocket PC (supports RS232/USB/bluetooth):

AutoEnginuity for Win PPC 2002/2003 v4.2, mobile 2003SE/2005 v4.4
AutoEnginuity for Palm 3.5+
EVOScanPPC for Mitsubishi 1994~2009 /Subaru,Win CE 4.2/5.0/6.0, Pocket PC
2002/2003, Win Mobile 5/6/7
OBD Gauge for PalmOS & Pocket PC by Dana Peters
ScanMaster-PPC for Pocket PC, Win Mobile

Operation Steps:

1. Keep car key at off position
2. Plug the Vgate scantool into Car OBDII female socket.
OBD2 socket is usually below the driving wheel.
The Vgate should blink all 3 LEDs and off again.
Only red power LED remains on.

3. Insert car key.
4. Switch car key to Accessory ON position,
5. Turn on WiFi of PCtebook/smart phone.

Check Windows control panel>wireless network>Setting>Advanced>Wireless mode>IEEE 802.11b/g/n.
Check android wifi setting, turn off existing link.
Check iPhone Wi-Fi networks, turn off existing link.

6. Scan the Vgate wifi device from your Desktop/Notebook PC/PDA/phone.
Find SSID "VGATE" or "BUYOBD".
The Vgate blue LED should be on now. Otherwise, the device doesn't respond to the scanning.

7. For Windows/Android,

If SSID is "VGATE", it is DHCP mode, not need to set up.

If SSID is "BUYOBD", enter 13 digits password shown on the label of the white plastic case.
IP: select "Fixed", and enter "192.168.0.10"
Subnet mask: enter "255.255.255.0"

DNS: keep blank

For iPhone/iPad:

If SSID is "VGATE", it is DHCP mode, not need to set up.
If SSID is "BUYOBD", enter 13 digits password shown on the label of the white plastic case.
IP: change from "DHCP" to "Fixed"!
IP: enter "192.168.0.11" or later
Subnet mask: enter "255.255.255.0"
HTTP local port: enter "35000"

8. App setup: select Vgate device as KiWi wifi or ELM327.

Click link, app will build a link to Vgate.
App may take time for scaning vehicle protocol less than a minute or so.
App starts to show static data once recognize the protocol and has correct table of associated sensor.
The Vgate green LED should be blinking now.
The faster data rate the protocol is, the the faster the green LED blinks.
Turn off the app, not  minimize", if app fails to link and doesn't show data. Start another app and try again.
Some vehicles may have to turn car key to "ON/Start" position to activate car ECU.
Turn car key to "ON/Start" position to read real-time data.
Communication Protocol

Specifictions:

-Wireless Rate:IEEE 802.11n,IEEE 802.11g, IEEE 802.11b
-Channle: 1-14
-Frequency range: 2.4-2.4835G
-Send Power:15~18DBM
-Interface: UART,GPIO
-Antenna Type: External antenna
-Distance:100~300m(different situation)
-Small size, compact structure. Plug and never unplug
-Stable wireless connection
-No wires or batteries (adapter is powered by the diagnosis size sockets)
-Stop communication, wait half an hour, auto sleep
-Supports all OBDII protocols
-The adapter uses the fastest and most reliable ARM chips

Package List:

1x iCar 3 ELM327
1x CD&Manual
1x White Carrying box
