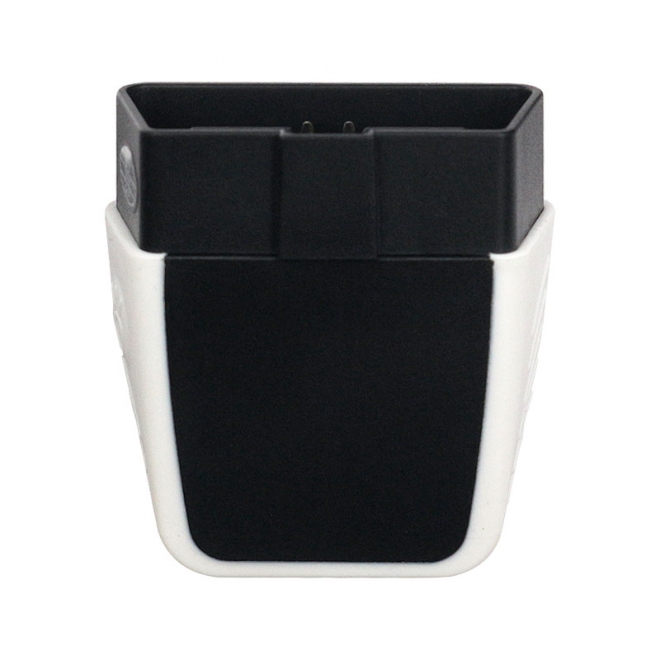

V08 ELM327 Bluetooth 4.0 HW V2.2 PIC18F25K80 Code Reader

V08 ELM327 Bluetooth 4.0 HW V2.2 PIC18F25K80 Code Reader

Attention:

This V08 Firmware V1.5 With PIC18F25K80 Chip, Only works with most 16pin port obdii standard cars. It can not support all car models, please check carefully before order.

V08 ELM327 Bluetooth Features:

1. Bluetooth Version: V4.0

2. Hardware: V2.2 (better than v1.5.)

3. Chip: PIC18F25K80 Chip

4. Supports 9 OBDII protocols

5. V08 ELM327 Compatible Softwares:

Windows: ScanMaster-ELM, ScanTool.net, PCMSCAN ect...

Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD ect...

iOS: Auto Doctor, Mini OBDII

Symbian: OBDScope

6. V08 ELM327 Compatible System:
Windows XP, Windows 7/8 , Android, Symbian, iOS

7. It with LED Function

Supported Protocol:

1. SAE J1850 PWM (41.6Kbaud)

2. SAE J1850 VPW (10.4Kbaud)

3. ISO9141-2(5 baud init, 10.4Kbaud)

4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5. ISO14230-4 KWP (fast init, 10.4 Kbaud)

6. ISO15765-4 CAN (11bit ID, 500 Kbaud)

7. ISO15765-4 CAN (29bit ID, 500 Kbaud)

8. ISO15765-4 CAN (11bit ID, 250 Kbaud)

9. ISO15765-4 CAN (29bit ID, 250 Kbaud)


Functions:

1. Read the error diagnostic code - generic and vendor specific, and show what they mean (the database has more than 3000 generic code definitions)

2. Clear the error code and turn off the MIL (check engine indicator).

3. Display current sensor data, including:
- Engine speed per minute (RPM)
- Calculated load values
- coolant temperature
- Fuel system status speed.
- Short term fuel situation
- Long term fuel situation
- Intake manifold pressure
- Injection advance time
- Intake temperature
- Air velocity
- Absolute position of throttle valve
- Oxygen detection voltage associated with short term fuel state
- Fuel system status
- Fuel pressure
- There are many other data for fuel consumption monitoring.

Packing List:

1pc x V08 ELM327
