TPMS EL-50448 Auto Tire Pressure Monitor Sensor For GM Opel
How to use TPMS el-50448

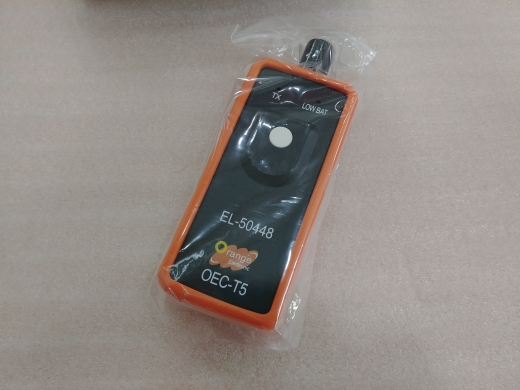

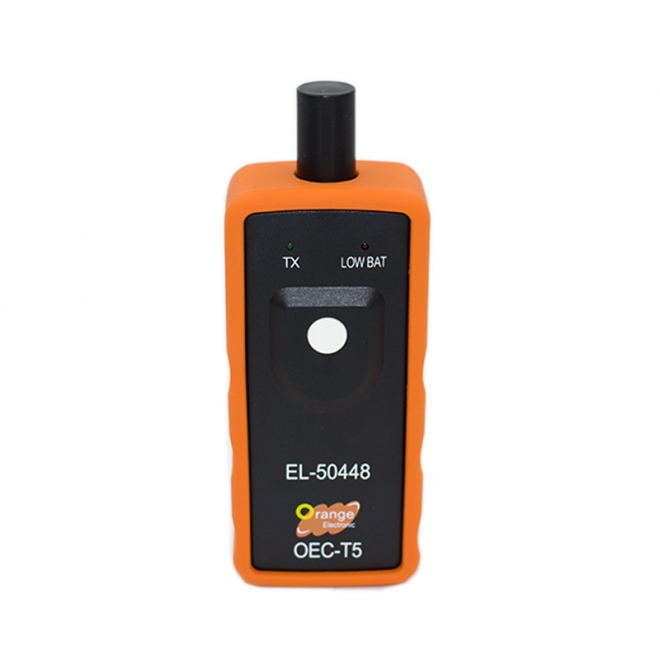

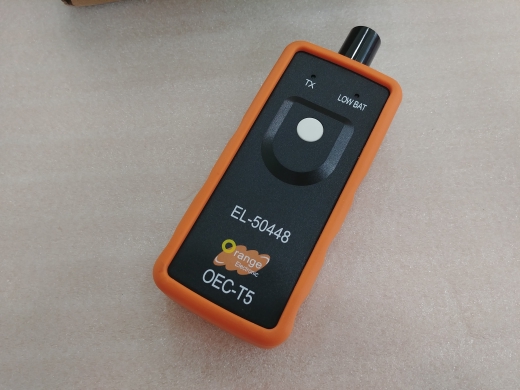

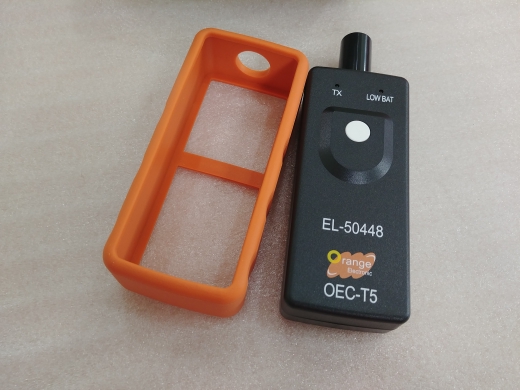

EL-50448 Introduction: Model name:EL-50448 Car Models:For GM/OPEL Functions:Auto Tire Pressure Monitor

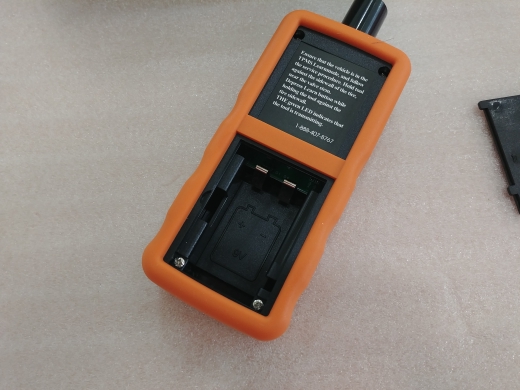

Install/User Note: The package does not include the charger and battery. The tire pressure sensor on models in & after 2012 can be read, only with some specified diagnostic tools. Before tire pressure monitoring system works normally properly, the body control module will record ID information of each position in the tire pressure sensor; and use the following methods to read the tire pressure sensor. After replacing a tire or wheel speed sensor.
Description:
GM vehicles equipped with a 315 or 433 MHz Tire Pressure Monitoring (TPM) system, a "Sensor Re-Learn Procedure" must be performed after tire rotations, Remote Control Door Lock Receiver Module replacement or Tire Pressure Sensor replacement. This re-learn procedure can be performed by using special tool EL-50448. Also works on 2014 G.M models.
How to use EL-50448:
Step 1 - Enter leaning mode Set the gearshift lever to "P" Put the ignition switch to “ON” Enter the interface of tire pressure display by DIC DIC shows "Press Set / Ctrl to re-learn" Press “Set / Ctrl” The turn signal is lighted for 3 seconds and the horn beep sound twice to enter the learning mode
Step 2 - Read tire pressure sensor information Start from the front-left wheel, Make the J-46079 or Diagnostic Tool EL-50448 antenna up against the valve core position & close to the rim of the tire sidewall El-50448 tire pressure tool starts by the start switch Successful to read the tire pressure sensor information when the horn bleeps once
Step 3 - Same method to read other tire pressure information Follow the instuction above to read tire pussure of the front-right, rear-right, rear-left wheels. Turn signals is lighted for 3 seconds and the horn bleeps twice when the learning is complete.
