Original Launch X431 V+ Wifi/Bluetooth Plus HD Heavy Duty Truck Scanner

2017 Original Launch X431 V+ Wifi/Bluetooth Plus HD Heavy Duty Truck Diagnostic Module Supports Trucks

Launch X431 V plus Heavy Duty Truck Scanner Diagnostic Introduction

X-431 Heavy-duty Truck Module is a new generation heavy-duty truck fault diagnostic tool developed by Launch Tech regarding internet application on the basis of Android OS. It communicates with X-431 PRO3/X-431PAD II throuth Bluetooth to achieve fault diagnosis for various car models and full systems. Advantages include wide car model coverage, powerful test function, more special functions and accurate test data, etc.

X-431 Heavy Duty HD Truck Diagnostic Model Highlights

1. HUAWEI Hisilicon Quad-core 1.2G Hz, faster speed.
2. 10.1 inch multi touch screen capacitor provides better view for diagnostic and data flow.
3. 1GB of memory and 8 GB of storage for data.
4. Contain 72 car brands from US, europe, asia and so on.
5. Support wifi / Bluetooth and one-click update.
6. 6600 mAh Li battery, can keep working for 8 hours.
7. Multi language available: English, German, French, Italian, Spanish, Portuguese, Polish, Russian, Japanese, Chinese
8. Original goods with full time technical service and warranty.

X-431 V+ heavy-duty module function

Main Features

-Unique LAUNCH cloud diagnosis technology
-Support wired diagnosis
-Support diagnosis for all car models of gasoline, diesel and natural gas engines that meet Euro III-Euro VI standards
-Industrial shockproof design, perfect for the working environment in repair shops
-Advanced modularization design technology, automatically switch between12V and24V power
-Diagnostic hardware is designed according to international standard, compatible with diagnostic interfaces of all car models worldwide
-Multiple diagnostic devices available, such as X-431 PR03S, X-431 PAD III, etc

Software diagnostic platform

-Read fault code
-Clear fault code
-Read data stream
-Actuation Test
-Special functions
-Read freeze frame
-ECU program

 Launch X431 V+ Heavy-Duty Trucks Fault Diagnostic Scan Tool Vehicle Lists

Main models:

China: DONGFENG SERIES FAW JIEFANG SINOTRUK FOTON AUMAN JAC SERIES YUTONG KINGLONG……
USA: FREIGHTLINER, INTERNATIONAL, KENWORTH, PETERBILT, STERLING…
Europe: M E RCE DES- BE NZ MAN VOLV0 SCANIA IVEC0 DAF RENAU LT
Asian: HIN0, FUS0, ISUZU, UD, HYUNDAI, ASHOKLEYLAND…

Main working Parameters:

Working temperature:-15-60°C
Storage temperature:-20-70°C
Relative humidity: 10%-80%
Product size: 110mm*178mm*50mm
Communication: USB, Bluetooth, Serial Port
Part 2: LAUNCH X-431 V+ Scanner Details

LAUNCH X-431 V+ Features

1. Diagnose:
Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCs, Clear DTCs, Read Data Stream, Special Functions etc.

Specially designed for Android platform with user-friendly interface.
Via Bluetooth, it is simple for the diagnostic connector to communicate with X-431 V+.
Equipped with an exclusive X-431 V+ protective sleeve to prevent it from being damaged.
Multiple maintenance and repair functions are supported to boost shop revenue: Electronic throttle position reset/learn and gear learning etc.

2. Repair Data: Provides a mass of service information for various vehicle models, which enables users to retrieve service data of some vehicle online.

3. Update: Lets you update your diagnostic software more efficiently.

4. Browser: Built-in Wi-Fi module makes surfing on the internet freely.

5. Email: Allows you to send and receive emails.

6. Settings: To configure your personalized X-431 V+ through it.

7. Other additional functions: Alarm, Calendar and Calculator etc.

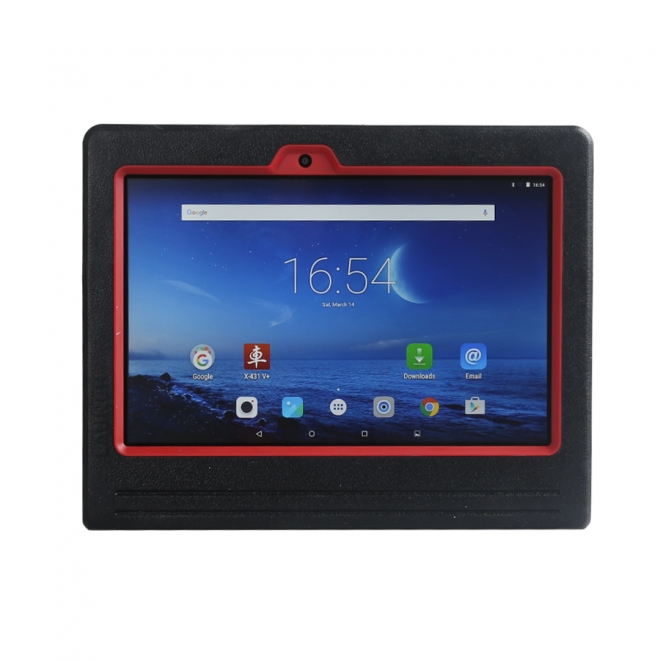

LAUNCH X-431 V+ Technical Parameters:

Operating system: Android 5.1
CPU: Quad-core 1.3GHz processor
Battery: 7000mAh rechargeable polymer lithium battery
Memory: 1GB
Storage capacity: 16GB
LCD: 10.1 inch
LCD resolution: 1280 x 800
Touch screen: Capacitive touch screen
Cameras: 5.0 mega pixels rear and 2.0 mega pixels front
Wi-Fi: Support 802.11a/b/g/h
Bluetooth: Supported
Working temperature: 0℃ ~ 45℃
Storage temperature: -20℃ ~ 70℃
DBSCar Connector Parameters：
Working voltage: 9 ~18V
Average working current: About 35mA
Standby current: About 25mA
Working temperature: -20 to 55℃
Storage temperature: -30 to 70℃
Storage humidity: <80%
Working humidity: <60%

Launch X431 V Plus Heavy Duty Full System Package List:

1pc x X-431 V pad computer
1pc x Password envelope
1pc x X-431 v protection sleeve
1pc x DBScar diagnostic connector
1pc x OBD II extension cable
1pc x Cigarette lighter cable
1pc x Power adaptor
1pc x USB data cable
1pc x Non-16pin connector

X431 V+ Software Package list:

X-431 V+ heavy-duty module package list
X-431 V+ heavy-duty module package list 2
X-431 V+ heavy-duty module package list 3

Heavy Duty Truck Diagnostic Module Software Listing:

1pc x Heavy-duty bluetooth module
1pc x Demo V14.73
1pc x JMC V12.35
1pc x ASTRA V10.42
1pc x BREMACH V10.06
1pc x DAF V11.21
1pc x ERF V10.05
1pc x for FUSO V16.02
1pc x for MACK V10.32
1pc x for MAN V14.71
1pc x for SCANIA V13.51
1pc x WP Diesel Car V10.40
1pc x X431 Diesel Car V1010
1pc x X431,CREDO Heavy Duty V10.20
1pc x X431,IRISBUS Heavy Duty V10.02
1pc x X431,IRIZAR Heavy Duty V10.02
1pc x X431,NEOPLAN Heavy Duty V10.04
1pc x X431,SETRA Heavy Duty V11.00
1pc x X431,SITCAR Heavy Duty V10.05
1pc x X431,UD Truck 2F JP diesel V10.40
1pc x X431, BONLUCK BUS V10.05
1pc x X-431,DongFeng YUFeng V10.03
1pc x X431, for Renault Truck V11.30
1pc x X431, for SUNLONG BUS V10.10
1pc x X431, for SUNWIN BUS V10.01
1pc x X431,ZHONGTONG BUS V10.01
1pc x for Merce.des Ben.z Heavy Duty V16.30
1pc x for FOTON AUMAN V13.40
1pc x for Volvo Heavy Duty V14.83
1pc x for Cummins Engine V14.41
1pc x for Hino Motors V16.50
1pc x for Isuzu Heavy Duty V14.10
1pc x for Hyundai Heav Duty V11.06
1pc x for IVECO Heavy Duty V18.87
1pc x China Heavy Duty V11.21
1pc x Heavy Duty Standard Diagnostic V11.11
