Mut III Scanner for Mitsubishi Introduction

A personal computer (PC) is connected to the MUTIII unit and used as a system's control terminal, and communicates with a vehicle ECU through the VCI. In addition to being able to handle all diagnosis functions covered by the conventional MUT-II tester, the MUT-III system can display data as easy-to-understand diagrams and graphs on a large screen of the PC. Unlike the MUT-II, the MUT-III can retain data on all vehicles, from old to new models, classified according to destination in the PC's hard disk. This eliminates the awkward but essential job with the MUT-II, of switching the data list (communications protocol data and diagnosis item list database) by replacing the ROM pack with another according to the vehicle model and year model.

Mitsubishi Mut 3 Mut III diagnostic Scanner Highlights

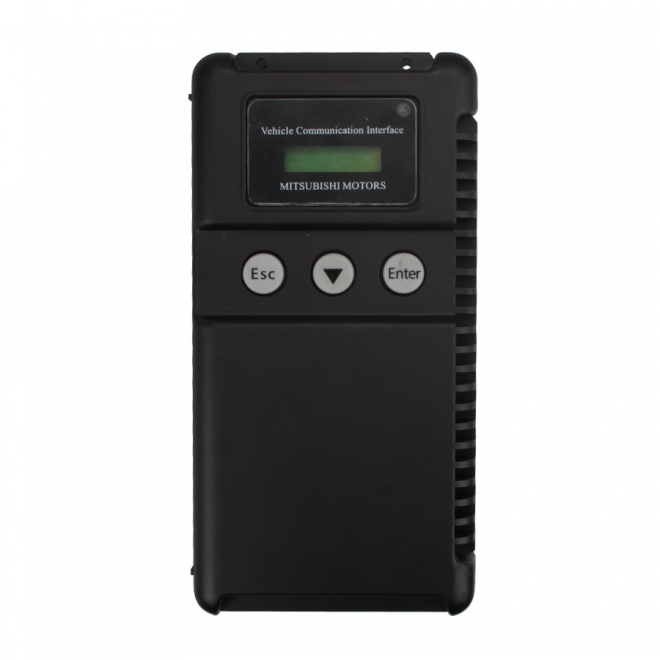

1. Vehicle Communication Interface (V. C. I. ) (MB991824)

A communication interface used to connect the vehicle ECUs and the PC.

1). When connected with the PC

- Vehicle diagnosis (Interactive fault diagnosis)

- SWS communication; CAN communication support

- Drive recorder

- ECU reprogramming

- Volt, Ohm, measurement

- Fuel pressure measurement (Not available in US)

2). When used with the V. C. I. Unit (disconnected from PC)

- V. C. I. Stand-alone diagnosis

- Drive recorder

- ECU reprogramming

- Volt, Ohm measurement

- Belt Tension measurement

(MB991939).

2. MUT-III Main Harness A (MB991910)

Used when connecting the V. C. I. with vehicles that have

Only one 16-pin diagnosis connector.

- Supports fault diagnosis and ECU updating on the

Above-described vehicles

- Supports the CAN communication system

3. MUT -III Main Harness B (MB991911)

Used when connecting V. C. I. with vehicles that have a 16-pin + 12-pin or 16-pin + 13-pin diagnosis connector.

For models equipped with only 12-pin (or 12-pin + 12-pin) Diagnosis connector, connect the M. U. T. -II adapter harness (MB991498) to the end of this harness in the same as M. U. T. -II, and power is supplied from the cigarette lighter  Socket.

Mitsubishi Mut 3 Mut iii Package List:

1pc x MUT-3 main unit

1pc x OBDII Cable

1pc x USB Cable

1pc x Harness A Cable

1pc x Harness B Cable

1pc x CD
