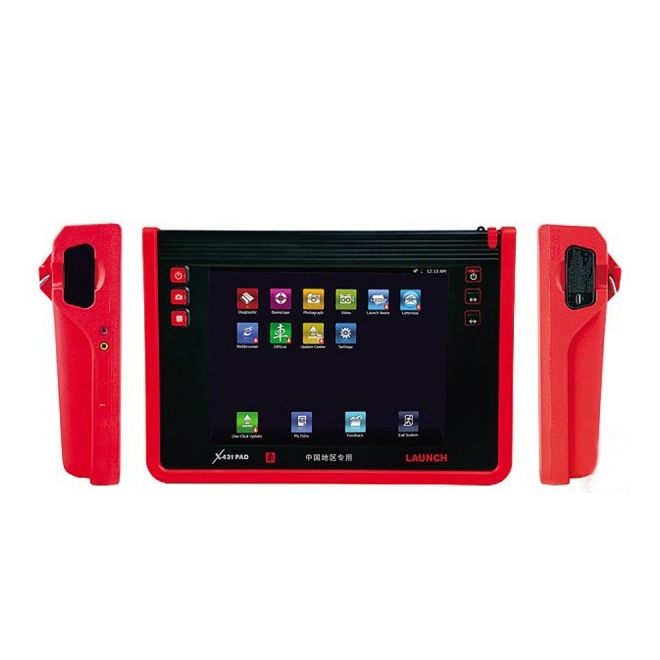

Launch X431 X-431 Pad Auto Scanner Support 3G WIFI X-431 Launch Pad
Launch X431 PAD 3G WIFI Description
X-431 PAD is the new generation tablet diagnostic scanner of LAUNCH for DBS (Diagnosis Based Solution) car system;configured with Windows Embedded Standard 7 OS, built-in printer and Pluggable DBScar connector; With wireless (3G, Wi-Fi) and Wired Network, One-key update and vehicle diagnostic functions (via Bluetooth communication);Extended functions: VGA/HDMI projection, Oscilloscope, Engine ignition analysis, Sensor simulation and test, Multimeter, Battery test, endoscope.Color touch screen, Easy operation.
Multi‑language Launch X431 Pad Auto Scanner Support 3G Wifi Highlights
1.X-431 PAD is the new generation tablet diagnostic scanner of LAUNCH for DBS (Diagnosis Based Solution) car system.
2.Compact structure ,powerful hardware configuration
3.Rich multimedia
4.Twelve groups of data flow oscillogram displayed on one screen
5.Customized remote collaboration
6.The first high-end diagnostic product based on the car networking appllcation of LAUNCH Company ,
combined with modern communication technology
7.Diverse internet applications
8.Various convenient one-key shortcuts
9.Convenient and flexible in use
10.Multi-languages supported.
11.Support 3G WIFI
X431 Pad Notice Tips
It doesn't have SD card ,only has a 16GB hard disk.
It is not available for updating in USA and European countries.People in these countries can buy South America VPN for updating.
Language: English, French, Italian, Portuguese, Russian, Turkish, Spanish, Traditional Chinese, Japanese, German
X-431 PAD Auto Scanner Support 3G Wifi Specification
1.6GHz Dual Core Processor
Memory --- 2GB
Hard Disk --- 16GB SSD
Battery --- 7400mAh, 7 hrs
9.7'' TFT IPS Wide Screen
1.3 million pixels (640 x480 resolution) camera
VGA&HDMI --- PPT/TV
X-431 PAD Software List
No. Origin Software Name Version
1 Demo Software V14.30
2 Smart diagnostic software V17.27
3 Smart OBDII diagnostic software V22.13
4 America America Ford diagnostic software V41.60
5 Chrysler diagnostic software V28.01
6 GM diagnostic software V42.50
7 X431, Acura Diagnostic Software V10.43
8 X431, INFINITI Diagnostic Software V10.31
9 X431, Lexus Diagnostic Software V10.73
10 Australia Australia Ford diagnostic software V25.10
11 Holden diagnostic software V40.00
12 Brazil Brazil GM diagnostic software V12.01
13 China Brilliance Auto diagnostic software V30.00
14 BYD diagnostic software V17.01
15 Changan vehicle diagnostic software V15.00
16 ChangCheng diagnostic software V32.00
17 Changhe diagnostic software V20.00
18 Chery diagnostic software V45.01
19 GEELY diagnostic software V17.00
20 Gonow Auto diagnostic software V12.01
21 HaFei diagnostic software V24.00
22 JAC car diagnostic software V18.01
23 Jiangling diagnostic software V12.22
24 SGMW diagnostic software V17.00
25 Tianjin FAW diagnostic software V16.40
26 Xiamen Golden diagnostic software V13.00
27 XinKai Diagnostic software V11.02
28 ZhongShun diagnostic software V12.01
29 Zhongxing diagnostic software V21.00
30 ZOTYE diagnostic software V17.00
31 Europe Audi diagnostic software V26.30
32 Benz diagnostic software V45.76
33 Europe BMW diagnostic software V45.60
34 Citroen diagnostic software V40.46
35 Europe Ford diagnostic software V40.30
36 Fiat diagnostic software V32.60
37 Jaguar diagnostic software V18.10
38 Lancia diagnostic software V15.72
39 Landrover diagnostic software V31.43
40 Opel diagnostic software V39.93
41 Peugeot diagnostic software V42.34
42 Porsche diagnostic software V20.21
43 Renault diagnostic software V40.75
44 Romeo diagnostic software V18.51
45 Rover diagnostic software V23.01
46 Saab diagnostic software V21.32
47 Seat diagnostic software V26.30
48 Skoda diagnostic software V26.30
49 Transporter&V-Class diagnostic software V19.43
50 Volkswagen diagnostic software V26.30
51 Volvo diagnostic software V41.61
52 India Indonesia Daihatsu diagnostic software V11.18
53 Indonesia Suzuki diagnostic software V10.09
54 Mahindra diagnostic software V11.03
55 MARUTI diagnostic software V14.03
56 TATA diagnostic software V13.03
57 Japan Daihatsu diagnostic software V19.90
58 Honda diagnostic software V43.94
59 JPIsuzu diagnostic software V13.30
60 Mazda diagnostic software V37.90
61 Mitsubishi diagnostic software V29.70
62 Nissan diagnostic software V41.20
63 Subaru diagnostic software V21.70
64 Suzuki diagnostic software V33.00
65 Japan Toyota diagnostic software V46.90
66 Korea Daewoo diagnostic software V26.60
67 Hyundai diagnostic software V47.90
68 Kia diagnostic software V41.90
69 Ssangyong diagnostic software V17.81
70 Malaysia Perodua diagnostic software V13.14
71 Proton diagnostic software V14.14
72 Russia GAZ diagnostic software V10.14
73 VAZ diagnostic software V13.05
74 S.Africa S.Africa Opel diagnostic software V10.60
75 Thailand Thailand Isuzu diagnostic software V13.30
Universal Auto Scanner Launch X431 PAD 3G WIFI Packing List:
1 Main unit 201024815 X431-PAD host (QI FEI) 1
2 Connector 201024811 DBScar diagnostic connector 1
3 105040059 DBScar, DAEWOO-12 diagnostic connector integrated 1
4 105040078 DBScar,AUDI-4 diagnostic connector linear 1
5 105040083 DBScar,BENZ-14 diagnostic connector linear 1
6 105040072 DBScar,BMW-20 diagnostic connector integrated 1
7 105040067 DBScar,CHRYSLER-6 diagnostic connector integrated 1
8 105040085 DBScar,DAIHATSU-4 diagnostic connector linear 1
9 105040079 DBScar,FIAT-3 diagnostic connector linear 1
10 Y203010554 DBScar,FORD-6+1 diagnostic connector integrated 1
11 105040080 DBScar,GAZ diagnostic connector linear 1
12 105040065 DBScar,GEELY-22 diagnostic connector integrated 1
13 105040074 DBScar,GM/VAZ-12 diagnostic connector integrated 1
14 105040060 DBScar,HONDA-3 diagnostic connector integrated 1
15 105040068 DBScar,KIA-20 diagnostic connector integrated 1
16 105040063 DBScar,MAZDA-17 diagnostic connector integrated 1
17 105040076 DBScar,MITSUBISHI/HYUNDAI-12+16 diagnostic connector 1
18 Y203010556 DBScar,NISSAN-14+16 diagnostic connector 1
19 105040082 DBScar,SSANGYONG-14 diagnostic connector linear 1
20 105040070 DBScar,SSANGYONG-20 diagnostic connector integrated 1
21 Connector 105040069 DBScar,SUBARU-9 diagnostic connector integrated 1
22 105040084 DBScar,SUZUKI-3 diagnostic connector linear 1
23 105040062 DBScar,TOYOTA-17 diagnostic connector integrated 1
24 105040064 DBScar,TOYOTA-22 diagnostic connector integrated 1
25 105040081 DBScar,UNIVERSAL-3 diagnostic connector linear 1
26 Test cable 105020991 CReader VII USB download cable 1
27 105020989 DBScar,OBD I Adaptor BOX switch wiring 1
28 105020988 DBScar,OBDⅡ-16 Extend extension line 1
29 Y203010242 LIGHTER 1
30 Y203010270 CLIPPER 1
31 Software memory card 204011292 X-431 PAD overseas full configuration software package 1
32 Accessories 107011058 X-431 PAD manual (English) 1
33 107011060 X-431 PAD Quick Installation Guide (English) 1
34 102210101 X431-PAD host adapter(QI FEI) 1
35 102150010 Clipper fuse 5*20mm 4
36 102150012 Lighter fuse 6*30mm 2
37 107020654 Private & confidential 1
