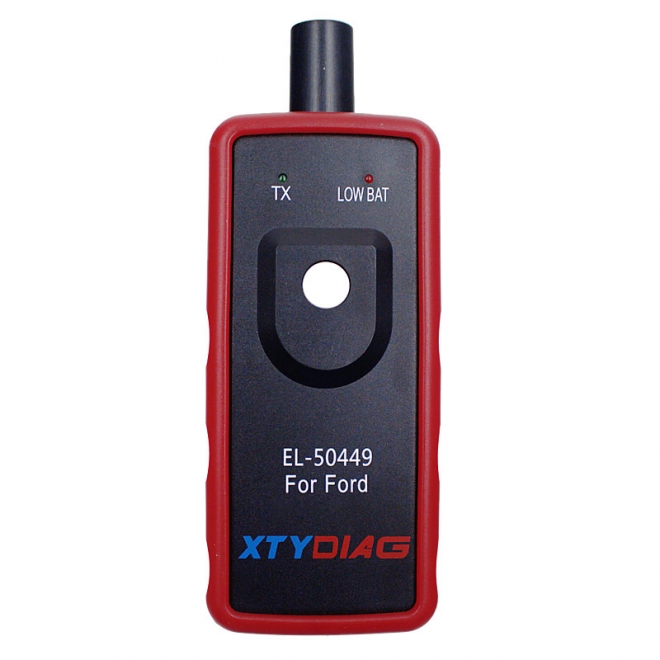

Ford EL-50449 Auto Tire Pressure Monitor Sensor TPMS Activation Tool

EL-50449 FORD Auto Tire Pressure Monitor Sensor TPMS Activation Tool

2017 Newest EL-50449 Instruction :

Model Name: EL50449 TMPS Tool
Software Version: Newest version
Function: Auto Tire Pressure Monitor Sensor Reset Tool
Feature: Tire Pressure Sensor replacement
Car Models: For ford

Ford brand car,in the replacement tire pressure sensor or tire pressure alarm or exchange tires, need to carry out tire pressure reset operation.

How to use Ford EL-50449 Tire Pressure Monitor Sensor ?

Step1: Set the vehicle into the tire pressure training mode (plug the key, step on the parking brake, the car keys from the off to open 3 times, and then step on the parking brake, turn off the car keys, and then from the off to open three times; Training mode for the vehicle to start the state of the three consecutive dangerous alarm flash), if you hear the speaker sounded that the training mode has been enabled；

Step2: Starting from the left front tire, the antenna of the dedicated tool for tire pressure monitoring is facing upwards against the tire sidewall near the rim of the valve stem to start the antenna. Press and release the start button and wait for the speaker to emit a chirp. Once the speaker is chirping, the sensor information is read and the turn signal to be read at the next position will light；

Step3: When the speaker is ringing and the right front turn signal light is on, the remaining three sensors repeat step (2) in the following order: 3.1. Right before 3.2. Right rear 3.3.Left rear；

Step4: When the left rear sensor has been read and the speaker is also issued twice, the read process is completed and the body control module also exits the read mode.

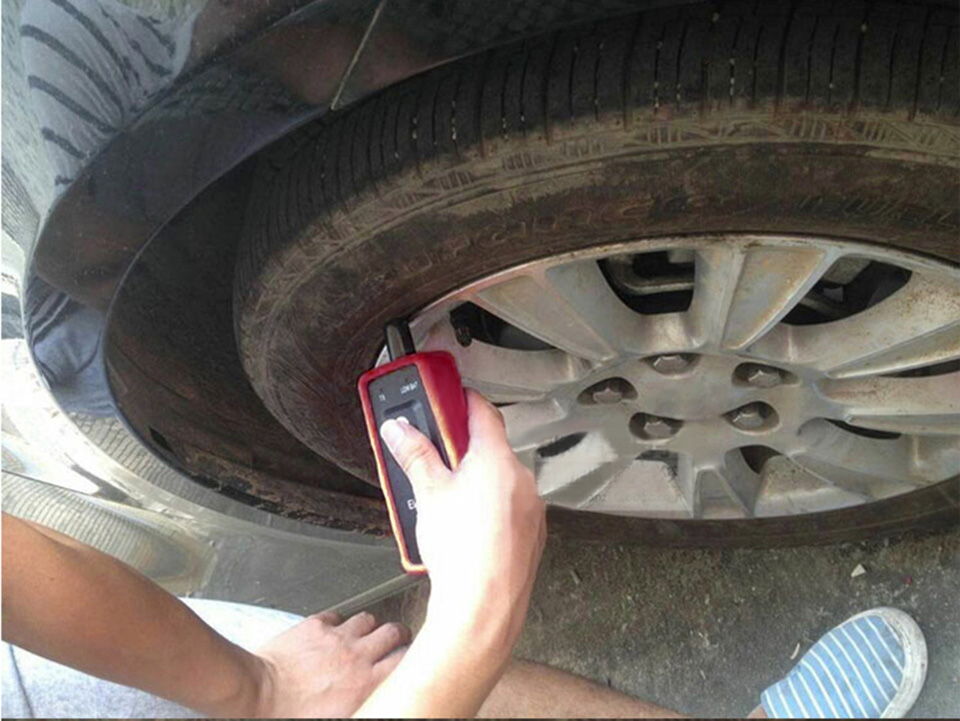

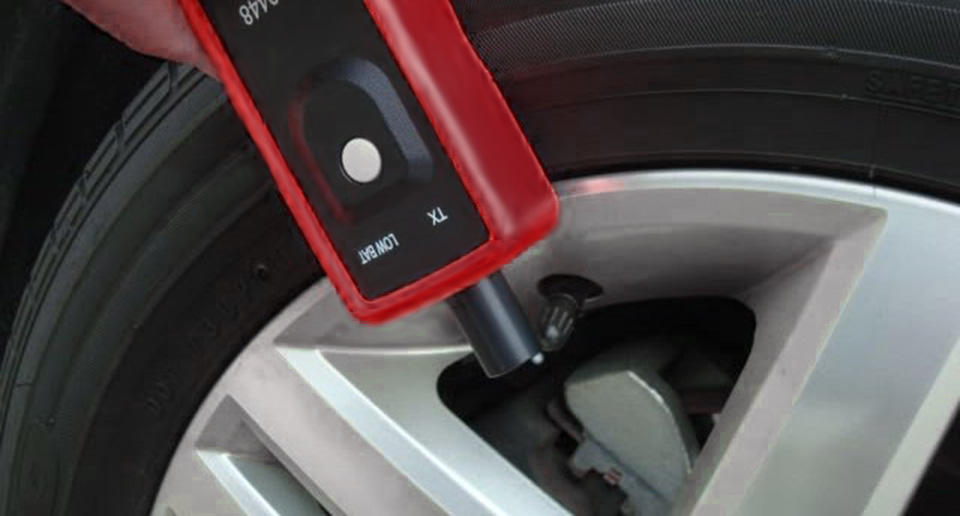

EL-50449 FORD Auto Tire Pressure Monitor Sensor Display pictures

EL-50449 Notice:

1 There is no battery in the package.Please buy it yourself.This is more easy to pass Custom,please notice.
2 Is the position of the antenna to the tires of the antenna, between the tires and the wheels near the gas core，not wore the gas core.


For EL-50449 Ford models：

 2007-2014 for Ford F-150
2008-2015 for Ford F-250 F-350 F-450 F-550 Super Duty
2007-2015 for Ford Mustang
2007-2014 for Ford Edge
2006-2015 for Ford Escape
2008-2015 for Ford Expedition
2006-2016 for Ford Explorer
2008-2015 for Ford Flex
2008-2015 for Ford Taurus
2008-2015 for Ford E-150 E-250 E-350 E-450 Econoline Vans
2008-2015 for Ford Fiesta
2008-2015 for Ford for Focus
2008-2015 for Ford Fusion
2008-2011 for Ford Crown Victoria
2011-2015 for Ford Transit Connect
2006-2011 for Ford Ranger

2007-2015 Lincoln MKX
2007-2015 Lincoln MKT
2008-2015 Lincoln MKZ
2008-2015 Lincoln MKS
2008-2015 Lincoln Navigator
2008-2011 Lincoln Town Car
2007-2008 Lincoln Mark LT

2006-2010 Mercury Mountaineer
2006-2010 Mercury Monterey
2006-2011 Mercury Mariner
2006-2011 Mercuy Grand Marquis
2006-2011 Mercury Milan

Package list:

1* EL-50449
