DPA5 Dearborn Protocol Adapter 5 Heavy Duty Truck Scanner without Bluetooth

DPA5 Dearborn Protocol Adapter 5 Heavy Duty Truck Scanner without Bluetooth

Dearborn Adapter 5 Introduction:
Model name:DPA 5
Software Version:Newest
Update:By link
Car Models:For Heavy Duty
Languages:English
Functions:Diagnostic interface
Connection:By OBD2.
Computer requirements:XP

DPA5 Description:

Dearborn Adapter 5 is designed to help manufacturers diagnostic the fault of trucks, trailers, buses and light commercial vehicles. It covers multiple systems and widely used, it's user friendly. Dearborn Adapter 5 is an professional tool for the maintenance of the commercial vehicle manufacturers.

It covering all critical systems, including engines, transmissions, brake warning device, comfort, safety, emissions, air suspension, trailer and maintenance, to provide in-depth functionality for each application.

It is based on the DS tool technology, it can use for the following hardware platforms: PC, Pocket PC (PDA) or net-book (UMPC, also known as Ultra Mobile PC),and provide information update for customers by regularly upgraded the supporting software.

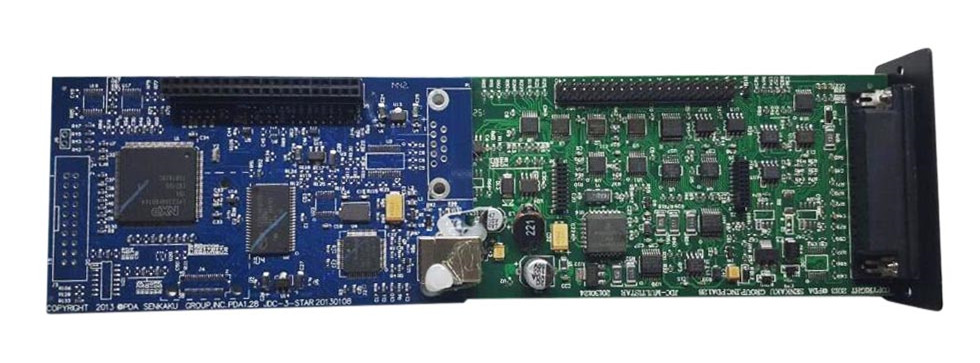

Our good quality PCB :

Heavy-Duty Truck Diagnostic Applications:

1,VOLVO TRUCK: FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12, FL6, FL7, FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12 , F16, NL10, NL12,
VOLVO BUSES: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY

2,VOLVO BUS: B12B,B12M,B12R,B6R,B7L,B7R,B9L,B9R,B9S,B9TL,PREVH,PREVX,

3,MACK TRUCKS:V-MAC I,  V-MAC II,  V-MAC III,  V-MAC IV, Service Diagnostic

4,VOLVO CONSTRUCTION EQUIPMENT (CE):

Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F, L60E, L60F, L70E, L70F, L90E, L90F
Articulated Hauler: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D,

Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC360B, EC360C, EC460B, EC460C, EC700C, EC700B, EC700C, ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B, EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL4611
Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960 , G970, G976, G990

5,Navistar:  ALL Diamond Logic Builder (DLB) ServiceMaxx
6,International: ALL Intune, MD32,
7,Freightliner:  ALL ServiceLink:cascadia,century,columbia,Coronado,classic,FLDSD,4900FA, 4900SA,4900EX.

ENGINES

1,Detroit Diesel Diagnostic Link™ (DDDL)

    All DDEC VI equipped engines ,
DD13,DD15,DD16,SERIES60,MBE4000,MBE900,and RS9, RSX9-A,RSX9-B, RSX9-R, RS10, RSX10 J1939 engine brake level for Series 2000 and 4000 Engines with USA and ISO firing order selection

2, Caterpillar (on high way engine for j1939)
3126, 3406, 3306B, 3512C, C4.4,  C6.6  C7   C9  C11,  C13

3,Cummins  INSITE7.6  insite7.5

4D95-cm2150c/D  6D125/6D140/6D170
B5.9g  C Gas plus/B Gas plus
C8.3g/L10G  Gas compression GTA3.9/5.9/8.3GC,
KTA19/38GC-CM556  ISB-CM2150D
ISB-CM2250  ISB-CM850
ISB Daimler Chrysler  ISB4.5/6.7 CM2150
ISB5.9G-CM2180  ISBe-CM850
ISBe-CM2150E  ISC-CM2150D
ISC-CM2250  ISC-Transit Bus ISL8.3-CM850
ISDe-CM2150C  ISF2.8-CM2220E
ISF2.8-CM2220S  ISF3.8-CM2220
ISF3.8-CM2220S  ISL-CM2150D
ISL-CM2250  ISL G-CM2180A
ISL8.9-CM850  ISLe4.5-CM2150E
ISM-CM870  ISM-CM875
ISM-CM876  ISM11 CM876
ISX-CM871  ISX11.9/15/16-CM2250
ISX/ISZ13-CM2150  L Gas Plus
QSB 6.7-CM2250  QSB 3.3-CM2150D
QSB4.5/5.9/6.7-CM850  QSB5/7-CM850
QSC8.3-CM2250  QSC8.3/QSL9
QSK19-CM850/CM2150  QSK19/23/45/60/78
QSK19G/45G/60G,QSV81/91  QSK23-CM500
QSL 9-CM2250  QSK50/60-CM850/CM2150
QSK38-CM850/CM2150  QSK38-CM850/CM2150
QST30-CM552  QST30-CM850
QSX15  Signature/ISX-CM870

4,Perkins Engines

1000 (6 Cyl) / 6.354 Series  RA - 6.247 Series
RA - 6.247  T - 6.354 Series
SOS - 6.354 Standard Option Schemes  TC - 6.354
TD - H6.354  TE - T6.354
TF - HT6.354  TG - 6.354.1
TH - T6.354.1  TJ - 6.354.2
TK - C6.354.2  TP - T6.354.3
TR - 6.372  TT - TC6.354.1
TU - T6.354.4  TV - 6.372.4
TW - 6.354.4  TX - C6.354.4
TY - H6.354.4  TZ - HT6.354.4
Y - Phaser / 1006 Series  YA - 6.60
YB - T6.60  YC - C6.60
YD - CC6.60  YE - T6.60CC
YG - 6.601  YH - T6.601
YJ - CCA6.601  YK - CCW6.601
YS - Option Packs M225TI / M215C  D - 1100 Series 3 Cylinder
DC - 1103C-33  DD - 1103C-33T
DF - 1103B-33  DG - 1103B-33T
DJ - 1103A-33
R - 1100 Series 4 Cylinder  DK -1103A-33T
RE - 1104C-44
RF - 1104C-E44  RG - 1104C-44T
RH - 1104C-E44T  RJ - 1104C-44TA
RK - 1104C-E44TA  RR -1104A-44
RS -1104A-44T  RT -1104A-44TA
V - 1100 Series 6 Cylinder  VK - 1106-E60TA
P - 1100D Series 6 Cylinder  PJ - 1106D-E66TA
PO - Option Packs 1100 Series  N - 1100D Series 4 Cylinder ()
NH - 1104D-E44T ()  1300 / Peregrine Series
W - 1300 Series  WB - T6.466
WC - CC6.466  WD - T6.67
WF - T6.76  WG - CC6.76
WH - T6.87  WJ - CC6.87
WK - UT6.76 HEUI  WL - UCC6.76 HEUI
WN - UCC6.87 HEUI  WO - 1300 Series Option Packs
WP - UT6.761(I) HEUI  WR - UT6.871(I) HEUI
WS - UCC6.871(I) HEUI  S4B - 3008
S4C - 8M700 / 800TI Condor Marine  S4C - 8M700 / 800TI Condor Marine
S4E - 3008 SI  6A - 3012
S6A - 3012  S6C - 3012
S6D - 3012  S6E - 3012 SI
4 - 3000 Series  6 - 3000 Series
8 - 2000 Series  8B - 2006
8C - Eagle / 2006  8D - Drops / 2006
8G - 2006 SI  S8B - 2006
S8C - Eagle / 2006  S8D - Drops / 2006
S8E - 2006 SI  S - 2000 / 3000 Series
SAA - E300TX Euro1 Eagle  SAC - E335TX Euro1 Eagle
SAF - E375TX Euro1 Eagle  SAG - E400TX Euro1 Eagle
SAJ - E340TX Euro2  SAK - E380TX Euro2
SAL - E410TX Euro2  SGA - TAG1A Elektropak / Gen Sets
SGB - TAG2 Elektropak / Gen Sets  SGC - TAG2A Elektropak / Gen Sets
SGD - TAG3A Elektropak / Gen Sets  SGE - TAG4 Elektropak / Gen Sets
SGG - TG1A Elektropak / Gen Sets  SGH - TG2A Elektropak / Gen Sets
SGJ - TTAG Elektropak / Gen Sets  SGK - TWG2 Elektropak / Gen Sets
SGM - TAG5 Elektropak / Gen Sets  SGN - TAG2B Elektropak / Gen Sets
SGP - TAG1B Elektropak / Gen Sets  SHA - 2006 TWH
SIA - SI Combined Heat / Power  SIB - SI Combined Heat / Power
SIC - TSI Combined Heat / Power  SID - TSI Combined Heat / Power
SMA - M600TI Condor Marine  SMB - M700TI Condor Marine
SMC - M800TI Condor Marine  SMO - M600/700/800 Duffield Opt Kit
SPA - Industrial 17T  SPB - Industrial 12T1
SPC - Industrial 12T2  SPD - Industrial 12TA
SPM - Industrial 12TW  SPN - Industrial 26TW1
SXA - Prototype  SXD - Prototype
SXG - Prototype  SXI - Prototype
SXM - Prototype  SXP - Prototype
2300 / 2800 Series  2300 - 6 Cylinder
FGA - 14L TAG1 Generating Sets  FGB - 14L TAG2 Generating Sets
FGD - 14L TAG3 Generating Sets  2800 - 6 Cylinder
HGA - 16L TAG1 Generating Sets  HGB - 16L TAG2 Generating Sets
JGA - 18L TAG1 Generating Sets  JGB - 18L TAG2 Generating Sets
JGD 4000 Series  DGA - TAG1 Generating Sets
DGB - TAG2 Generating Sets  DGD - TAG3 Generating Sets
DGE - TAG4 Generating Sets  DGF - TG Generating Sets
DGK - TWG2 Generating Sets  DGL - TAG Generating Sets
DGM - TWG Generating Sets  DGN - TWG3 Generating Sets
DGP - TEG Generating Sets  DGR - TEG2 Generating Sets
DGV - TWG2C Generating Sets  DIE - TESI Combined Heat / Power
DIF - TESI Gas Unit  DIG - 4016E61TRS
DME - Seaking – Marine

1,Meritor  WABCO toolbox
  D and E Versions ,HABS, hpb, ESC, RSC, ECAS
2,Bendix® ACom™ Diagnostics
  EC-17T, Generation 4 and 5, EC-30T, EC-60T (standard, premium and advanced), A-18T,MC-30T and the trailer antilock braking TABS-6 unit
3, Meritor  ZF
4,Eaton Service Ranger

Vorad VS-400 Collision Warning System
Generation 2 Auto shift and Ultra shift Transmissions
Generation 3 Auto shift and Ultra shift Transmissions
Ultra Shift PLUS Transmissions
Lightning Transmissions
Hybrid Drivetrain Systems

5,Allison DOC
Allison1000,2000,3000,4000,
Cec2-5610,6610,8610,9610
CEC-MTB600,CLBT-V,HT700,B700
CEC-5,CEC-6,CEC-8,CEC9000

Software Interface Capability(Includes DVD)

Detroit Diesel Diagnostic Link  7.05
Caterpillar  Electronic Technician  2010B
Cummins Insite  7.5 windows XP and 7,inste 7.6only for windows 7
International - ServiceMAXX Fleet Pro
Volvo PTT 2.40
VCADS /Elite Mack/Volvo  2.35
V-MAC Service Tools
Allison DOC? For PC-Service Tool - Protocols Supported: J1939, GMLAN, J1708/J1587, J1850, and
ATEC160
Allison DOC For PC (AED) - Protocols Supported: J1939
Allison DOC For Fleets (1000/2000) - Protocols Supported: J1939, J1850, GMLAN
Allison DOC For Fleets (3000/4000) - Protocols Supported: J1939, J1708/J1587
Eaton ServiceRanger 3.2
Bendix Acom
ZF-Meritor TransSoft  / WABCO Toolbox
International ABS
International DLB
International Intune
International IPC v2.02

PC-to-Vehicle Interfaces

API Support:
•  RP1210A/B
•  J2534-2
•  supports Windows xp and windows 7 32-bit and 64-bit and windows CE compliant

Not all applications are included. If compatibility confirmation is required, more information is needed, or there are questions about an unlisted application, please contact your dealer,he will send E-mail to us,. A specialist will help you make the right choice.

Protocol Coverage:

CAN - J1939/CAN125/CAN250/CAN500/CAN1000
2nd CAN - J1939/CAN125/CAN250/CAN500/CAN1000
J1587/J1708    J1850   J2534
ISO 15765 (Diagnostic CAN)
ISO 14230 (KWP2000 over ISO9141)  ALDL ATEC 160 (160 baud)

Cables and Accessories (Kit)

Kit Includes (6 Cable);
1X DG-DPA5-YDUALCAN
1X DG-DPA5-9OBDII_Volvo
1X DG-DPA5-VOLVO8PIN
1X DG-DPA5-VOLVO14PIN
1X DG-DPA5 KOMATSU
1X DG-DPA5-3Pin_Deutsch
1X DG-OBDii-o-Cable
1X DG-DPA5-15USB
