DA-Dongle J2534 SDD V139 VCI Device For Jaguar & Land Rover

XTY2061
0.5Kg

$175.00

175 reward points
Qty: Unit(s)

Add to wish list Price Match arrival

Related Download Files:



  • Description
  • Reviews(0)
  • Estimate Shipping Costs
  • Payment & Shipping

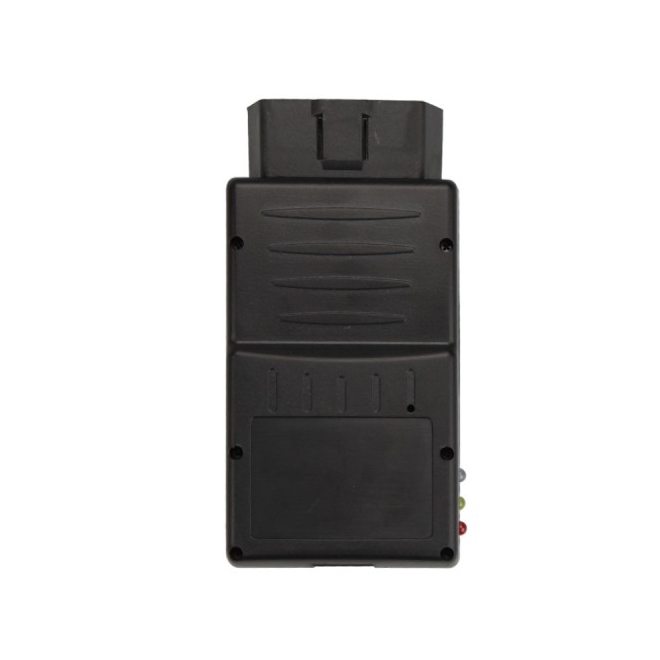

DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover Vehicles

JLR SDD Version: V139

1. The DA-Dongle J2534 device is simple and easy to use
2. JLR Approved device, replacement for JLR SDD VCM
3. Covers CAN, & ISO9141 vehicle networks
4. 12ft USB cable as standard included
5. Easy to update for J2534 new functionality

Jaguar & Land Rover Vehicle Coverage:
JLR Vehicles Supported?
Defender Yes
Discovery /LR3/LR4 Yes
Range Rover Sport & New Range Rover Sport Yes
Range Rover Yes*
New Range Rover Yes
Freelander /LR2 Yes
Evoque Yes
XJ – X300/X308 No
XJ - X350 No
XJ - X351 Yes
XJS No
XK – X100 No
XK - X150 Yes
XF Yes
S-Type No
X-Type No
F-Type Yes
(Yes) – Vehicle line fully supported:
(Yes) - Vehicle line fully supported apart from viewing Data logger signals from both ECM and TCM
modules simultaneously on 2006MY variants :
(No) - Vehicle Line Not supported – supported by DAVINA J2534 or DA-ST512 vehicle interface

DA-Dongle J2534 Functions:

1. It  will allow normal operation with the JLR SDD diagnostic tool,once the J2534 DLL files are loaded.
2. The DA-Dongle J2534 connects directly to the vehicle OBDII (diagnostic) connector and then to a laptop via a USB cable for use with SDD
3. Only SCP communications are not possible with this device

How to operate in J2534 mode?

1. Download the latest J2534 DLL software files from the Diagnostic Associates web site www.diagnostic-associates.com/download.htm and install these on the SDD laptop.
2. Connect the J2534 device to the vehicle OBDII connector (the device powers from the vehicle).
3. Connect the 12ft USB cable to the J2534 device and the other end to the SDD laptop.
4. The red vehicle power (PWR) LED will illuminate to show that the device is powered.
5. During communication with the vehicle the status (STS) LED will flash green.
6. The device interacts with the SDD diagnostic tool in the same way as the existing VCM.

Package List:

1pc x DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover Vehicles
